Introduction

This component displays a Select Count window.

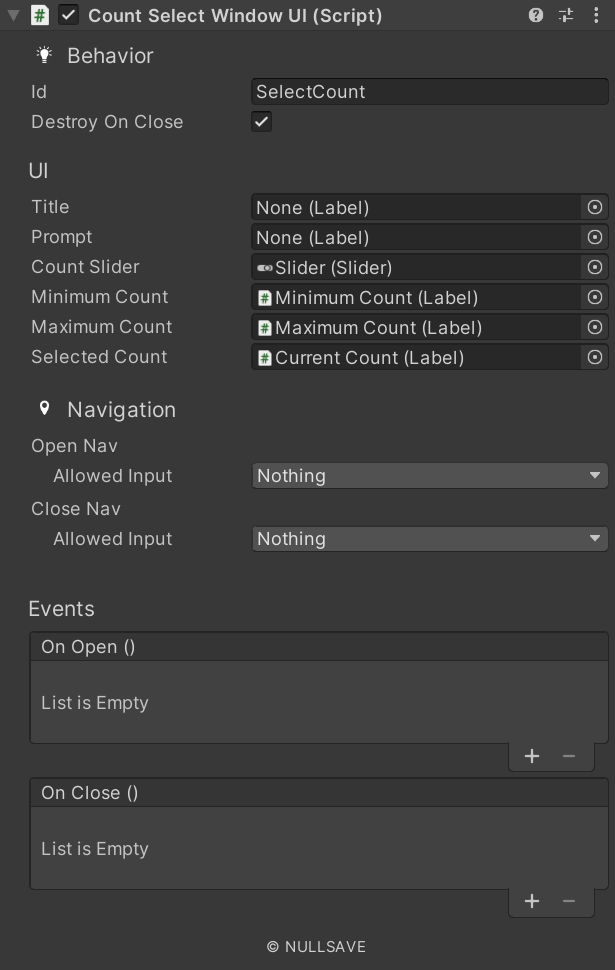

"Count Select Window UI"

Fields#

NameDescription
Minimum CountLabel displaying minimum allowed count
Maximum CountLabel displaying maximum allowed count
Selected CountLabel displaying currently selected count
Item UIItem UI display
LabelsList of labels and formats for displaying information
Count SliderSlider used for adjusting selected count
IdID for this screen
Destroy On CloseDestroy instance when screen is closed
Allow DragAllow the window to be dragged
Non ModalSet the window as non-modal, allowing other windows to open as well
Allow Multiple InstanceAllow multiple instances of this window to be open at the same time
Open NavOpen navigation
Close NavClose navigation
Audio Pool ChannelName of the broadcaster channel to use with the audio ppol
Open SoundSound to play on open
Close SoundSound to play on close
On OpenEvent raised when screen is opened
On CloseEvent raised when screen is closed

Properties#

NameDescription
parametersParameters associated with the window
themeTheme used to open window

Methods#

NameDescription
CancelCountClose window without selecting a count
ConfirmCountClose window and confirm selected count
SelectCountSet properties of the Select Count window
CloseClose the window
SetArgsSet the parameters for the window
