Introduction

This window provides control for managing Socket plugins on an item

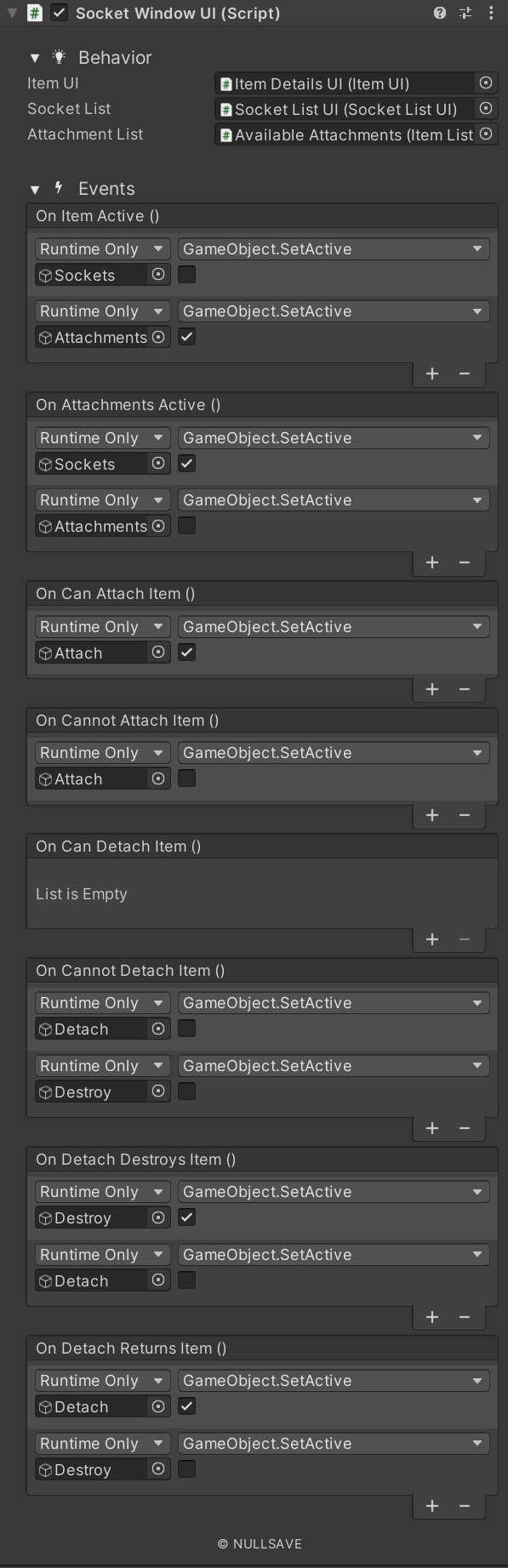

Fields

Name	Description
Item UI	Element displaying Item information
Socket List	Element displaying the list of all sockets on the item
Attachment List	Element displaying the list of available items to be attached to sockets
On Item Active	Event raised when item sockets are active
On Attachments Active	Event raised when attachments are active
On Can Attach Item	Event raised when the selected item can be attached to the socket
On Cannot Attach Item	Event raised when the selected item cannot be attached to the socket
On Can Detach Item	Event raised when the selected item can be detached to the socket
On Cannot Detach Item	Event raised when the selected item cannot be detached to the socket
On Detach Destroys Item	Event raised if detaching an item from a socket causes it to be destroyed
On Detach Returns Item	Event raised if detaching an item from a socket causes it to be returned to inventory
Id	ID for this screen
Destroy On Close	Destroy instance when screen is closed
Allow Drag	Allow the window to be dragged
Non Modal	Set the window as non-modal, allowing other windows to open as well
Allow Multiple Instance	Allow multiple instances of this window to be open at the same time
Open Nav	Open navigation
Close Nav	Close navigation
Audio Pool Channel	Name of the broadcaster channel to use with the audio ppol
Open Sound	Sound to play on open
Close Sound	Sound to play on close
On Open	Event raised when screen is opened
On Close	Event raised when screen is closed

Properties

Name	Description
item	Gets the item set for this window
sockets	Gets the list of Socket plugins for the item
parameters	Parameters associated with the window
theme	Theme used to open window

Methods

Name	Description
AttachSelectedItem	Attach the selected item to the socket
DetachSelectedItem	Detach the item from the selected socket
SetArgs	Set the parameters needed for the window
SwapState	Swap between the attachment list and the socket list
Close	Close the window
